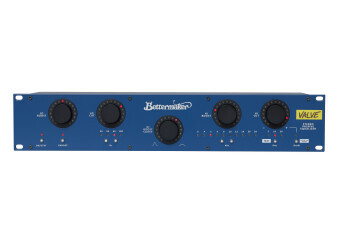

Bettermaker VACUM STEREO PASSIVE EQUALIZER [VSPE]
Stereo/Dual Mono Passive Equalizer including original vacuum tubes and handcrafted
transformers mede by Bettermaker.
VSPE comes with groundbreaking plugin featuring recall, snapshots, filter audition as well
as mastering grade HPF and LPF.
Maximum input level: +24 dBu (balanced with 48kΩ input impedance)
Maximum output level: +22 dBu
Output impedance: 120Ω (30Ω with HEAT activated - transformer balanced)
Nominal audio level: +4 dBu
Max LF boost: 15 dB (set to 100 Hz)
Max LF cut: 16 dB (set to 100 Hz)
Max HF boost: 18 dB (all frequencies) Low boost/cut frequencies: 20, 30, 60, 100 Hz
High boost frequencies: 3, 4, 5, 6, 8, 10, 12, 16, 20, 28 kHz
High cut frequencies: 5, 10, 20 kHz
Control Resolution: 101 steps (Lo Boost, Lo Cut, Hi Boost, Bandwidth) & 34 steps (Hi Cut)
Control Resolution in Quantize mode: 17 steps for all controls
Output gain: +/- 8 dB (0.1 dB resolution; 1 dB in Quantize mode)
Unit height: 2U
Unit depth: 140 mm
Unit weight without cables and PSU: 2.7kg
AC power consumption: 18W (2W in standby, with included 100-240VAC power adapter)
Shipping weight & dimensions: 3.5kg, 60x30x20 cm
