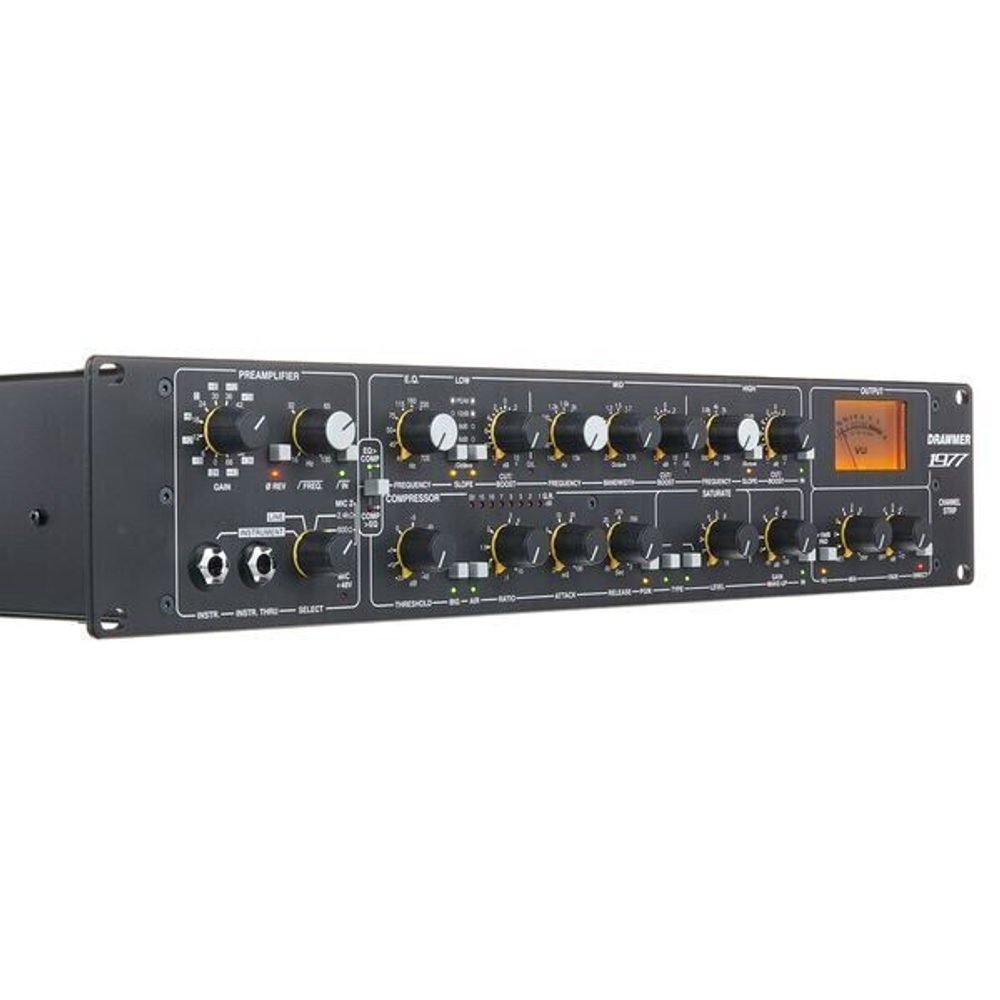

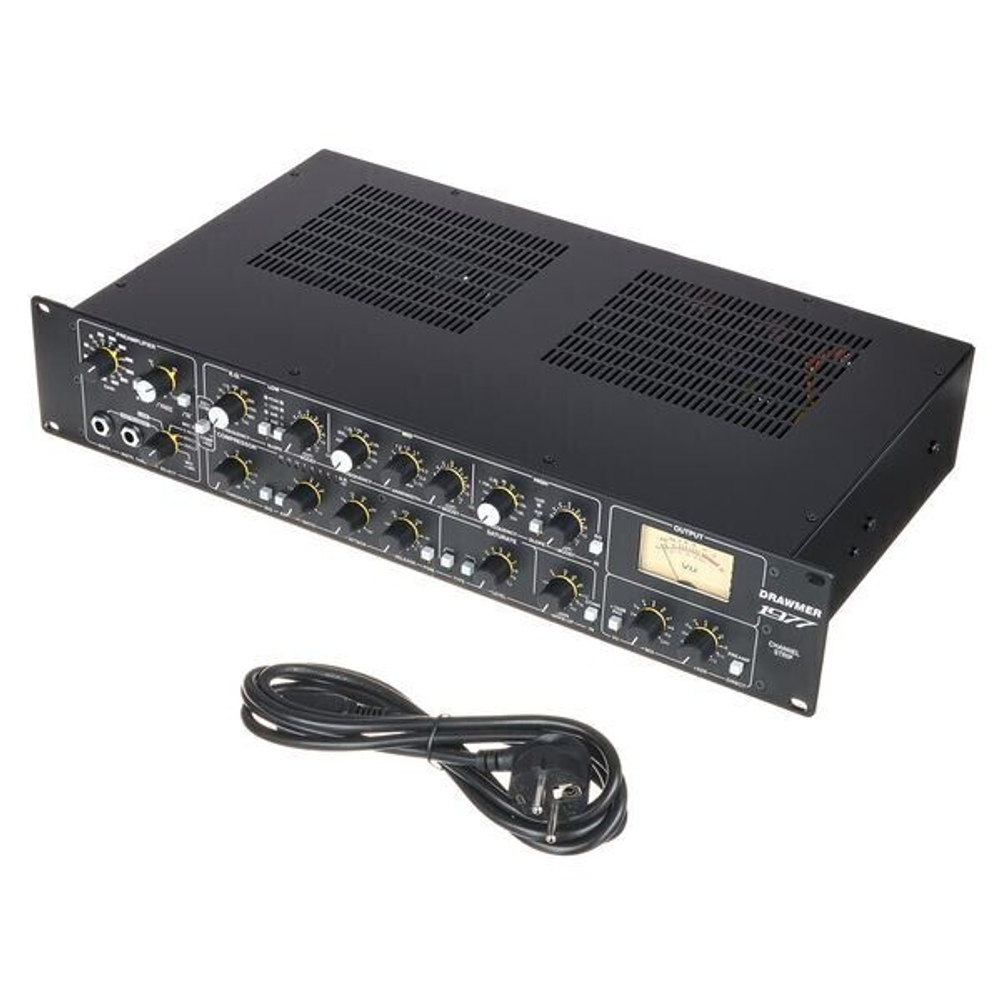

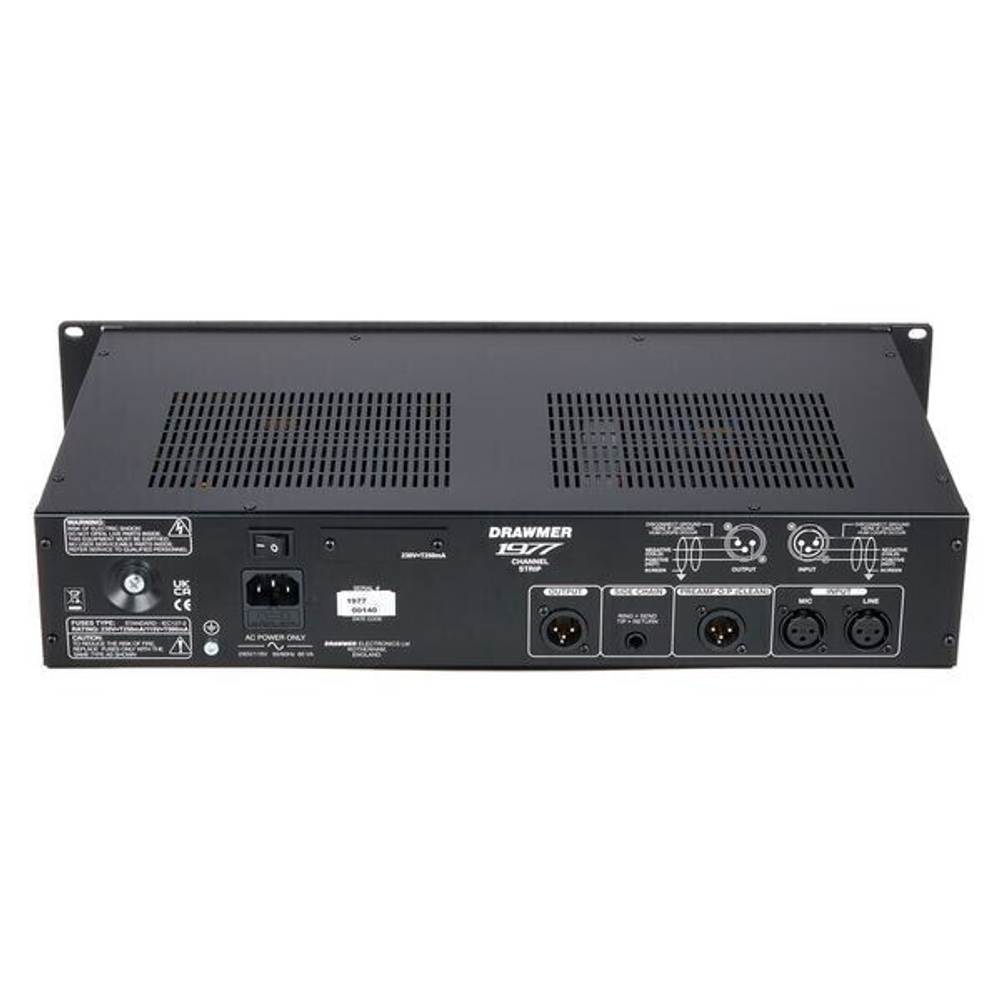

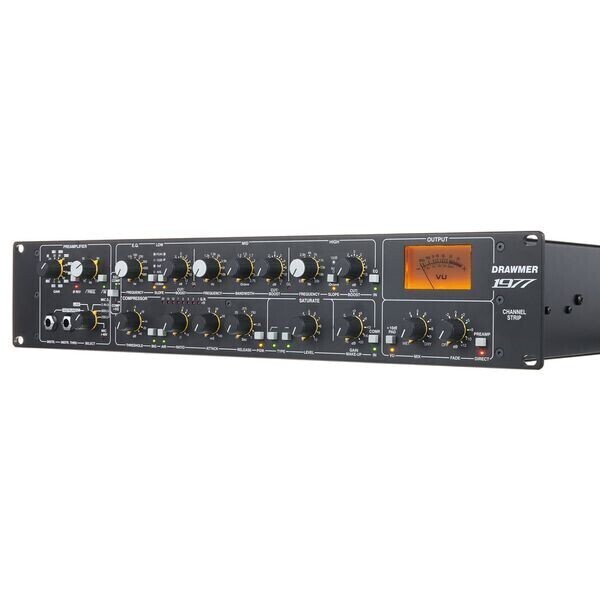

Drawmer 1977

Технические характеристики:

• Line input: XLR
• Mic input: XLR
• 48 V phantom power
• Instrument ID with direct output
• Input impedance (switchable): > 20 kOhm
• Input level max.: +21 dBu
• Microphone ON: -130 dB
• Input gain: 0 - +66 dB (microphone), -24 - +42 dB (instrument)
• Output impedance: 100 Ohm
• Output level max: +21 dBu (10 kOhm load impedance)
• Output gain: off - +12 dB
• Frequency response: 20 - 20,000 Hz +/-0.5 dB
• Noise (unity gain, 20 - 20,000 Hz): > 93 dB
• Distortion (THD+N @ 1 kHz): 0 dB: 0.01 %, 10 dB: 0.01 %
• High-pass filter (variable): 16 - 130 Hz
• Low band: 40 - 725 Hz
• Slope: 6 dB / 9 dB / 12 dB / Peak
• Cut/Boost: -12 - +12 dB
• Mid Band: 140 - 13,000 Hz
• Bandwidth: 0.25 - 2.75 octaves
• Cut/Boost: -12 - +12 dB
• High Band: 530 - 20,000 Hz
• Slope: 6 dB / 12 dB
• Cut/Boost: -12 - +12 dB
• Compressor:
• Threshold (-40 - +20 dB)
• Ratio (1:1 - 10:1)
• Attack (0.2 ms - 100 ms)
• Release (0.05 s - 2 s)
• Power supply: 230 V or 115 V at 50-60 Hz, 30 VA
• Габариты (Ш x В x Г): 482 x 88 x 270 mm
• Вес: 4.2 kg
