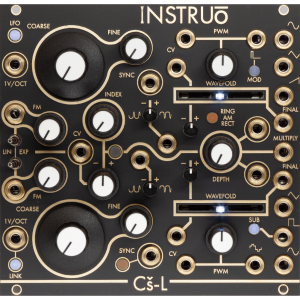

Instruo Cs-L

Specifications

• Sawtooth core voltage controlled oscillator (Oscillator A – Top)
• Waveforms: Sine, Triangle, Sawtooth, Pulse, wavefold final
• Triangle core voltage controlled oscillator (Oscillator B – Bottom)
• Waveforms: Sine, Triangle, Square/Sub, double pulse, wavefold final
• 1V/octave, Coarse and Fine pitch controls per oscillator
• Frequency modulation input per oscillator, linear or exponential response, with attenuators
• LFO range switch for oscillator A
• Switchable link between 1V/octave inputs for parallel tracking
• Multiply output with three modulator behaviour options
• CV over each wavefolder with attenuverters
• Symmetry offset control for each wavefolder with attenuverters
• CV controllable modulation bus (INDEX) with versatile definable internal routing
