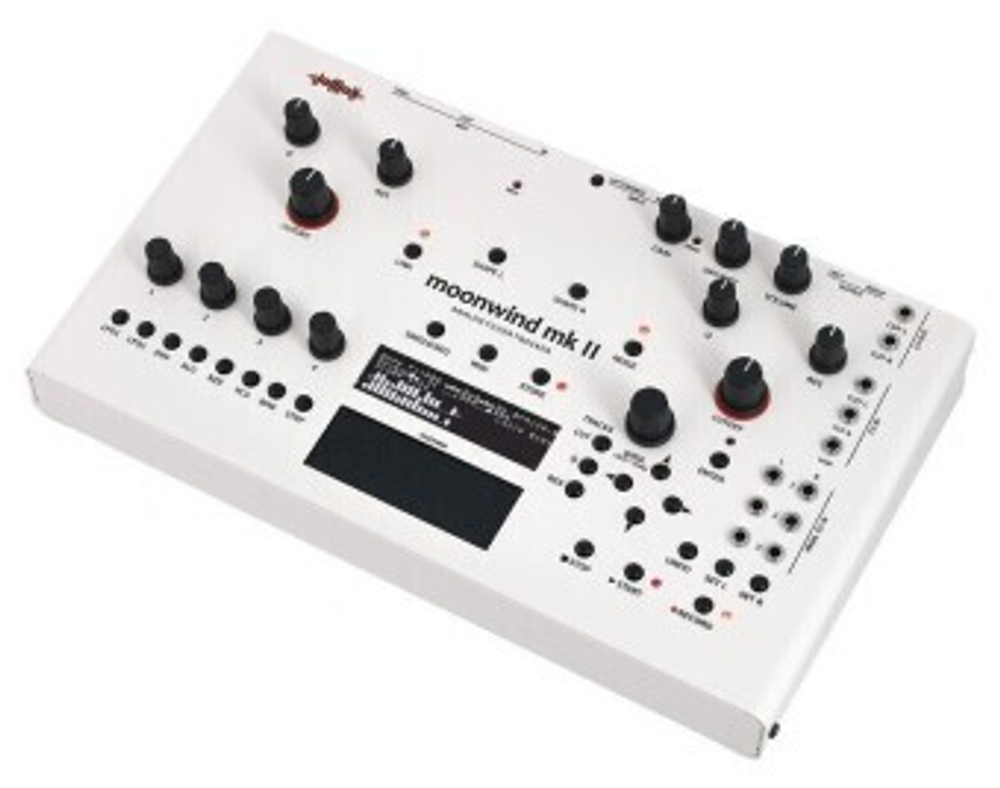

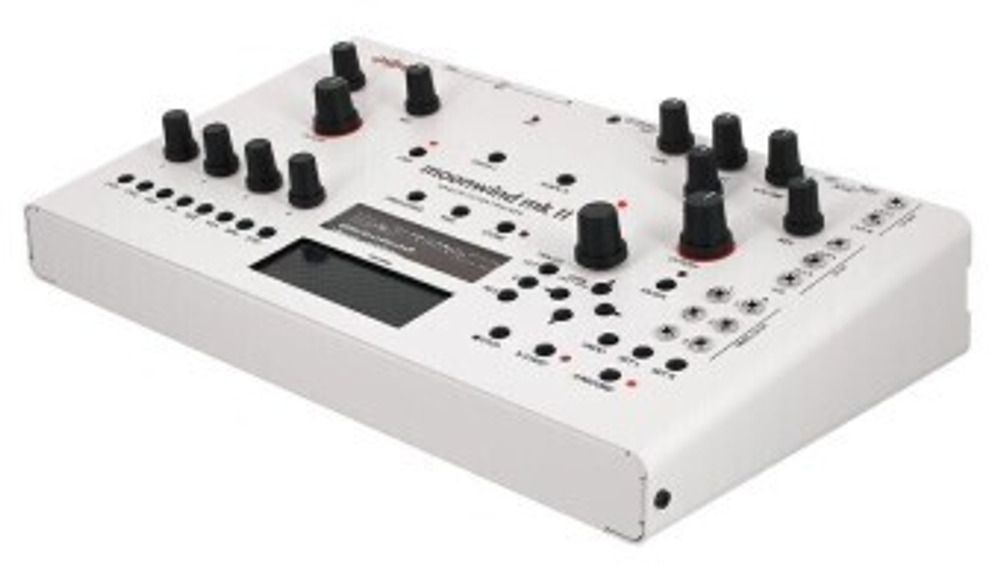

JoMoX Moonwind Mk2 Analog Filter Tracker

Analogue Stereo Filter and Effect Processor

• Per channel: Multimode filter (low-pass, band-pass, high-pass, notch) with adjustable filter frequency, bandwidth and resonance as well as modulation LFO with 64 waveforms, two ADSR envelopes and envelope follower
• Filter routings: stereo, parallel, serial or feedback
• Noise generator and VCA with overdrive
• Step sequencer with clock divider and a maximum of 32 steps for modulating filter frequency, bandwidth and resonance per channel
• Touchpad for real-time control of parameters and recording of sequences
• Multi-effects processor with 15 stereo algorithms (reverb, delay, chorus, pitch shifter, bit crusher and more)
• Memory locations for 256 presets
• All parameters can be controlled via MIDI
• 3 CV inputs for cutoff left, cutoff right and VCA: 3.5 mm jack
• 9 Assignable CV inputs: 3.5 mm jack
• 2 CV outputs: 3.5 mm jack
• 2 Line and instrument signal inputs: 6.3 mm jack
• 2 Aux inputs: 6.3 mm jack
• 2 Line outputs: 6.3 mm jack
• MIDI In / Out / Thru: 5-pin DIN
• Dimensions (W x D x H): 318 x 180 x 72 mm
• Weight: 1.8 kg
• Incl. external power supply unit (12 V DC, 2 A)
