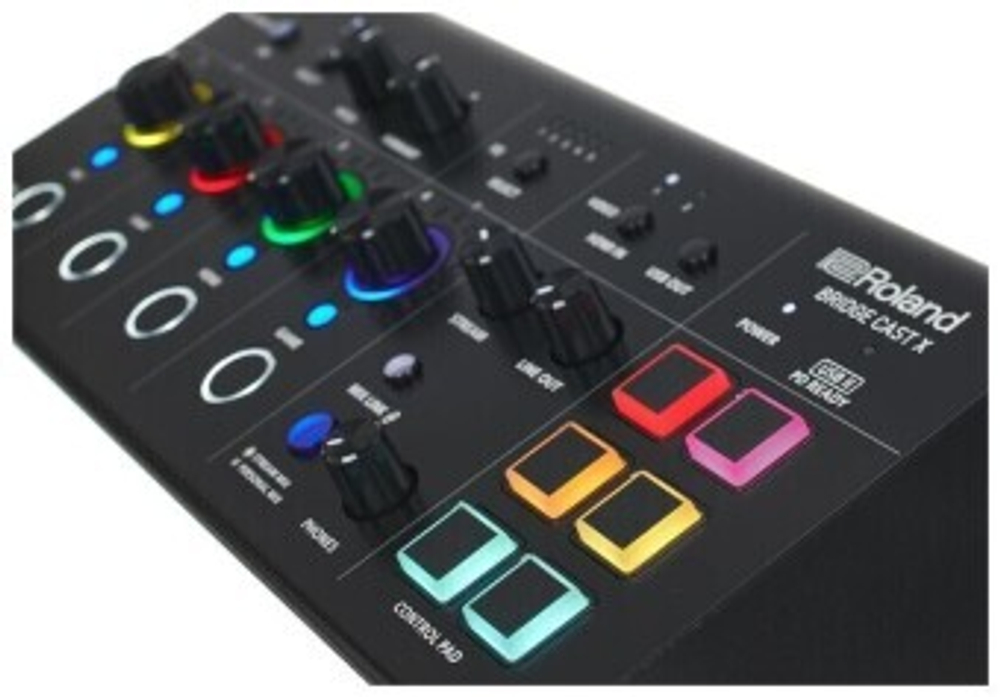

Roland BRIDGE CAST X

Roland Bridge Cast X – Звуковой USB интерфейс/микшер и карта видео захвата

Dual Bus Audio Mixer und Video Streaming Schnittstelle

• Professional interface for online gamers, podcasters and vloggers
• Seamless integration of multiple audio, video and streaming sources
• Dual bus architecture: two independent mixes can be created for online streaming and own monitoring
• Two HDMI ports for games consoles, cameras and other devices
• HDMI Thru for external monitor
• Two USB-C ports for PC, smartphones and tablets
• 6 Programmable and illuminated pads for sound effects, presets, OBS shortcuts and more
• 32-Bit hardware DSP for effects calculation
• 24 Bit / 96kHz audio processing
• Integrated 4-channel mixer for microphone and three streaming channels (Aux, Chat, Game), each with assignable button and illuminated rotary control
• Microphone input (XLR) with phantom power (+48V)
• Noise reduction, compressor, equaliser, de-esser, reverb and high-pass filter for microphone channel as well as voice effects from the Roland VT series
• Further effects: De-esser and compressor for chat channel, equaliser for game channel, and delay for streaming output for synchronisation.
• BRIDGE CAST app for further settings such as voice effects, equaliser presets, assignment of buttons and knobs to different functions, backlight colour and more
• BGM Cast allows the integration of royalty-free background musik and sound effects via the Roland Cloud and BRIDGE CAST App
• Separate volume controls for streaming, line out and headphone out
• USB-C port for power supply (5 V DC, 3,0 A - power supply not included)
• Headphone/headset jack: 3.5 mm stereo jack, CTIA
• Aux input: 3.5 mm stereo jack
• Line output: 3.5 mm stereo jack
• Solid metal housing
• Dimensions (W x D x H): 269 x 130 x 70 mm
• Weight: 1.35 kg
• Includes Quick Start Guide and 2x USB-C cable
