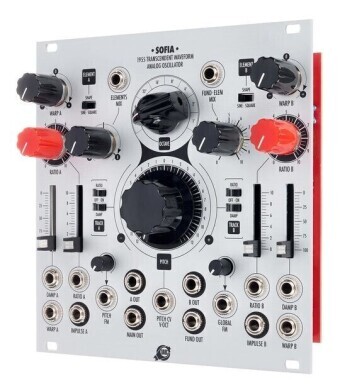

Xaoc Devices Sofia

Eurorack Module

• Analogue VCO for complex waveforms
• Triangle-core oscillator with pitch control and octave selector switch
• Two ripple elements, based on synthesis of formant sounds (FOF)
• Ratio, warp, damping and waveform (sine/rectangle) are adjustable per ripple element
• Element mix control with CV input
• Adjustable mix of sine fundamental tone and ripple elements (with CV input)
• CV inputs for all parameters
• Pitch CV input (1V/oct.)
• CV inputs with attenuators for Pitch FM and Global FM
• Outputs for the main signal, fundamental tone, ripple elements A&B, impulses A&B (decay curve of the elements)
• Current consumption: 90mA (+12V) / 80mA (-12V)
• Width: 24 TE
• Depth: 30 mm
