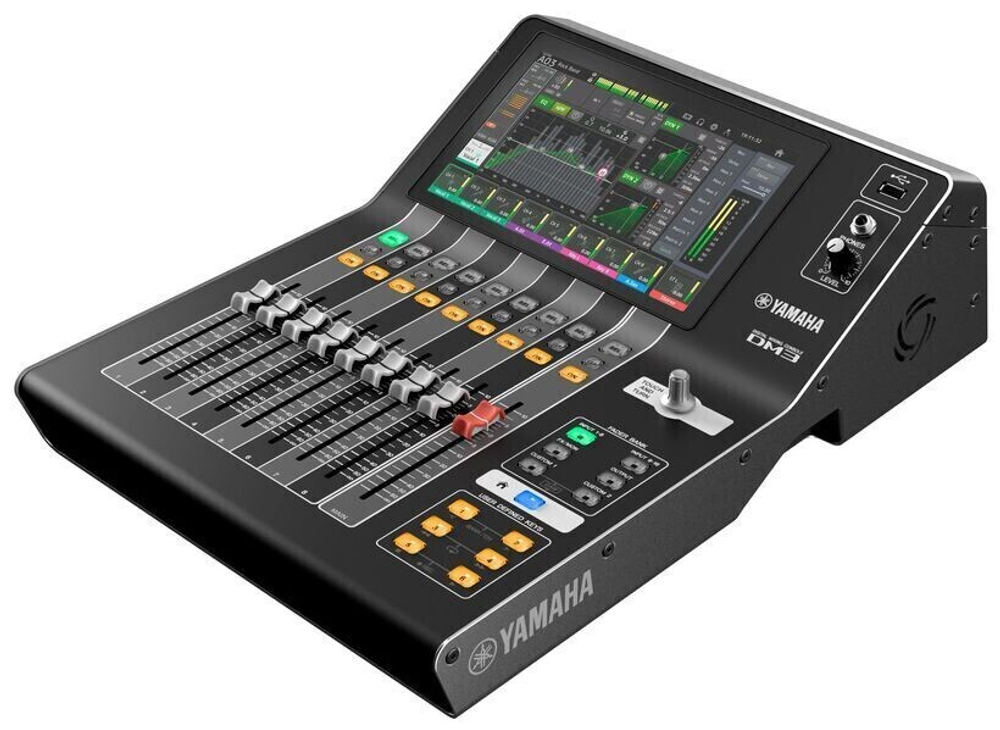

Yamaha DM3 Digital Mixing Console

16-Channel Mixer

• For studio, stream and live applications
• 9" Multi touchscreen
• 9 Motorised faders
• "Touch and Turn" control
• 18 x 18 USB 2.0 audio interface 48 kHz / 96 kHz

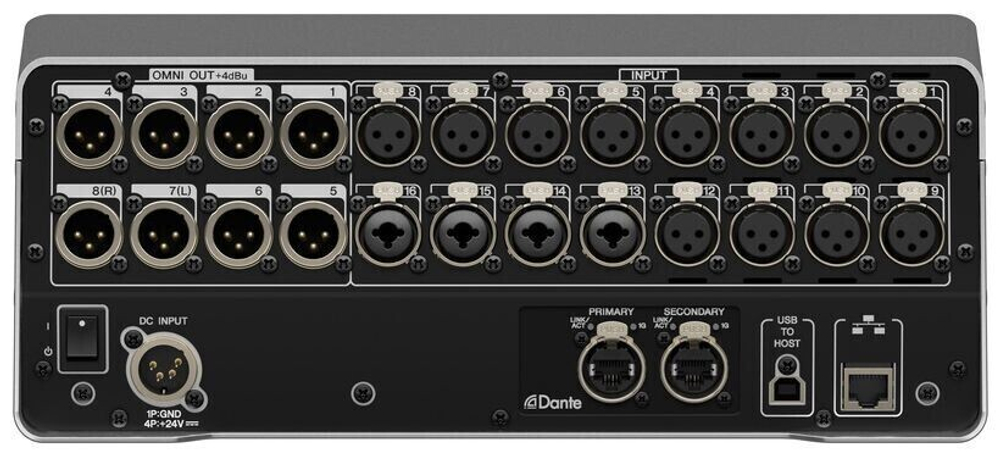

• 16 Mono Inputs + 1 Stereo + 2 FX Return
• 8 Outputs
• Buses: 1 stereo, 6 mix, 2 FX, 2 matrix (supports input to matrix)
• DAW Remote Feature (HUI)
• OSC support for installations
• Editor app available for tablet (tablet not included)
• 16 x 16 DANTE interface with 16 inputs and outputs
• 6 Freely assignable buttons
• 2 x 2 Channel recording/playback via USB port
• 18 Selectable effects + GEQ on Mix 1-6 and Stereo Bus
• 8 Groups with DCA roll-out
• Dimensions (W x H x D): 320 x 140 x 455 mm
• Weight: 6.5 kg
• Includes Steinberg Cubase AI and VST Rack Elements
